Three generations of engines with several subversions were built in the MiG-21 during 25 years of manufacturing. Because
of the limitations set by the fuselage there were only minor external differences between the different generations.
| Engine |
Versions |
Thrust (kN)* |
Remarks |
| R-11F-300 (37F) |
F, F-13, U |
38,2 / 53,4 |
|
| R-11F2-300 (37F2) |
F-13, PF, FL |
38,7 / 60,0 |
F-13 refitted |
| R-11F2S-300 (37F2S) |
PF, PFS, PFM, R, S, M, US, UM |
38,2 / 60,6 |
with blown flaps (SPS) |
| R-11F2SK-300 (37F2SK) |
MF |
38,2 / 60,6 |
with nozzle correction device KDS |
| R-13 (95) |
M, MF, RF, SM, SMT, UM |
39,9 / 63,7 |
M refitted, UM also refitted |
| R-25 (25) |
bis |
40,2 / 69,6 |
thrust 97,1kN with special regime at low level |
* without / with afterburner
|

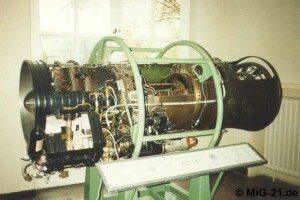

Engine of the first MiG-21 generation: R-11.
|
|

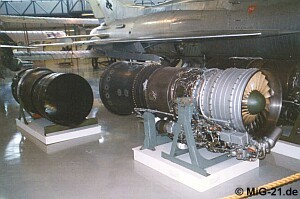

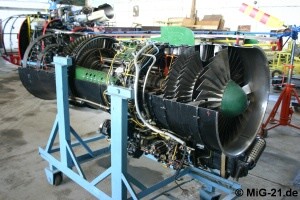

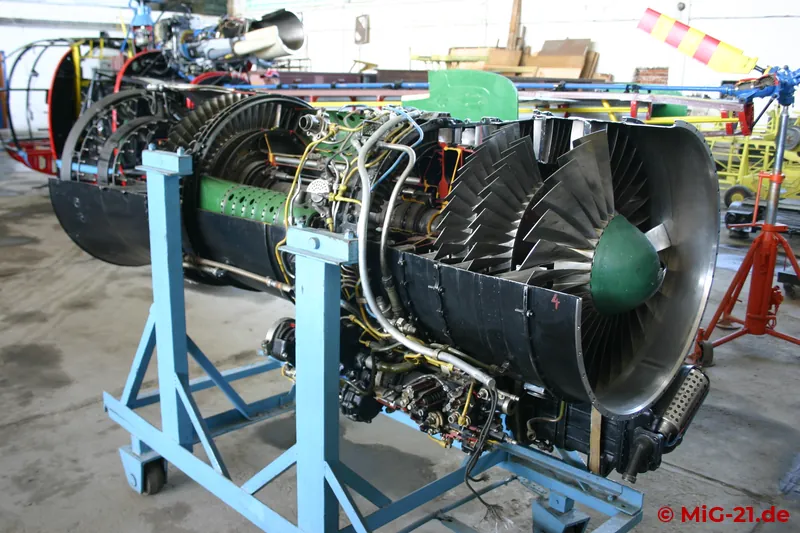

R-11 (part cutaway) from the left ...
|
|
... and from the right.
|
|

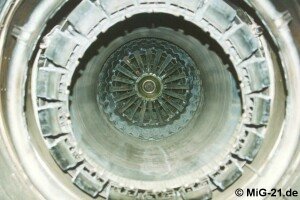

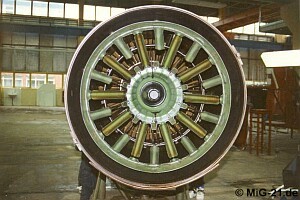

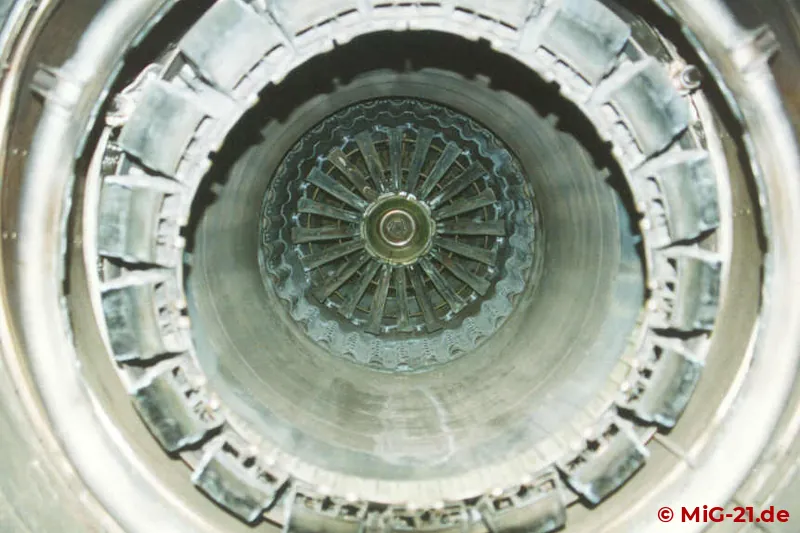

Externally the R-11 can be distinguished by its radially arranged flame stabilizers of the afterburner.
|
|

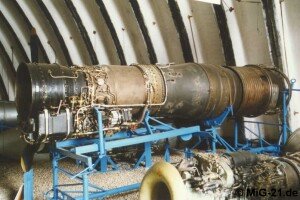

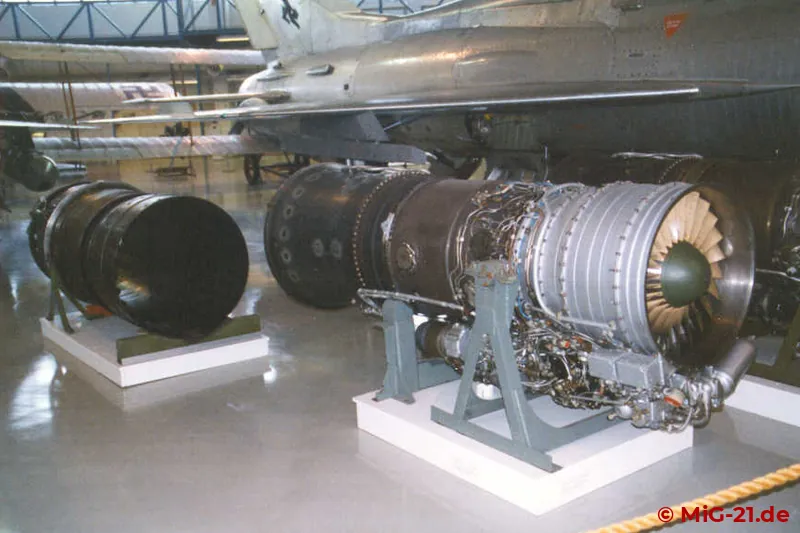

R-11 complete with afterburner.
|
|

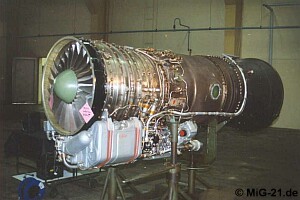

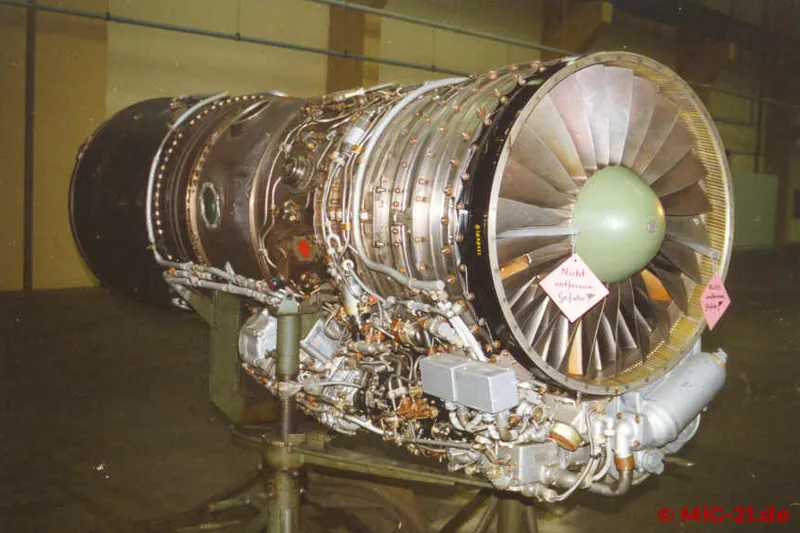

The R-13 differs from the R-11 in having grooved inner surfaces of the engine housing, ...
|
|

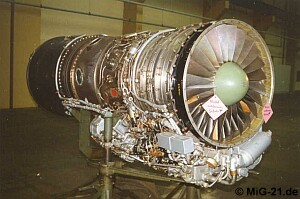

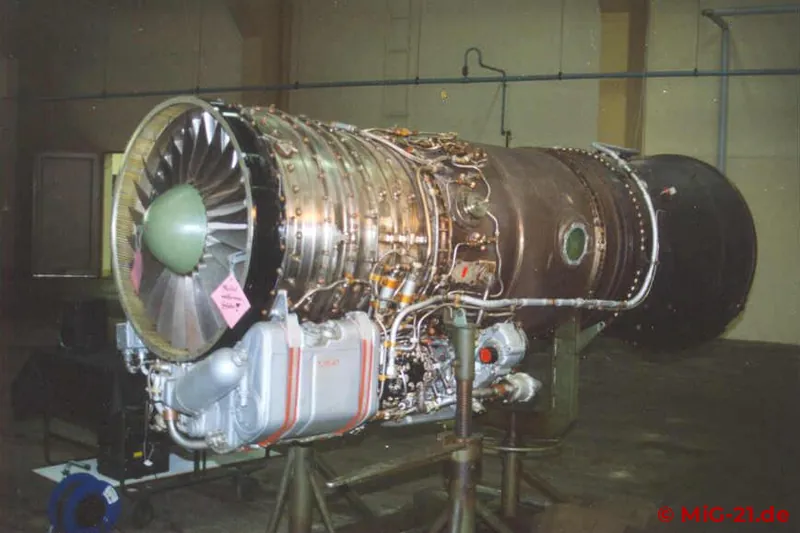

... seen here from the other side, ...
|
|

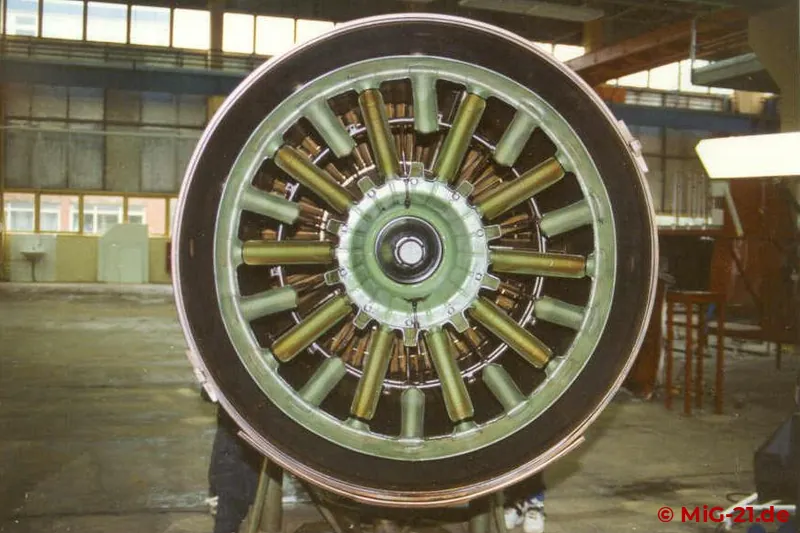

... and a combination of star-shaped and circular flame stabilizers. (Photos R-13: author's collection)
|
|

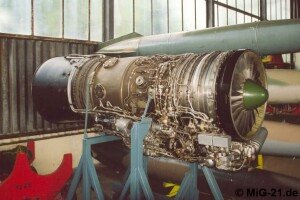

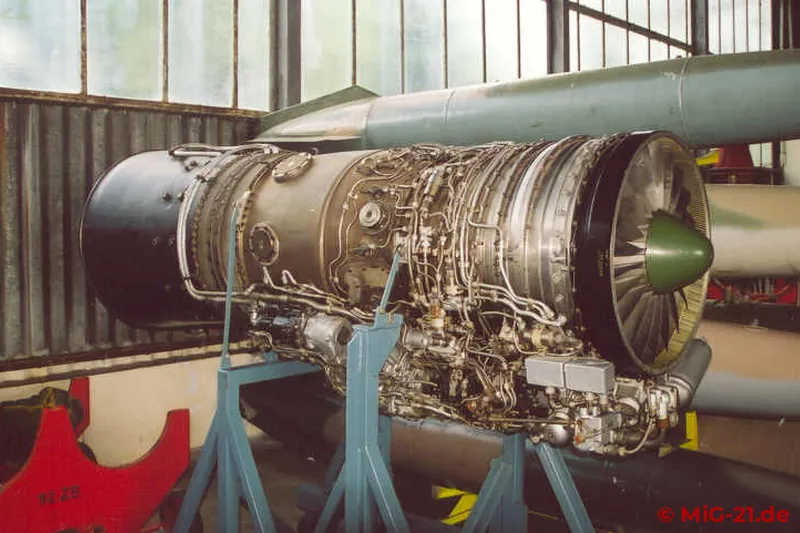

The R-25 also boasts grooved inner surfaces of the engine housing, but there are fewer rotor blades than on R-13 (21
instead of 24).
|
|

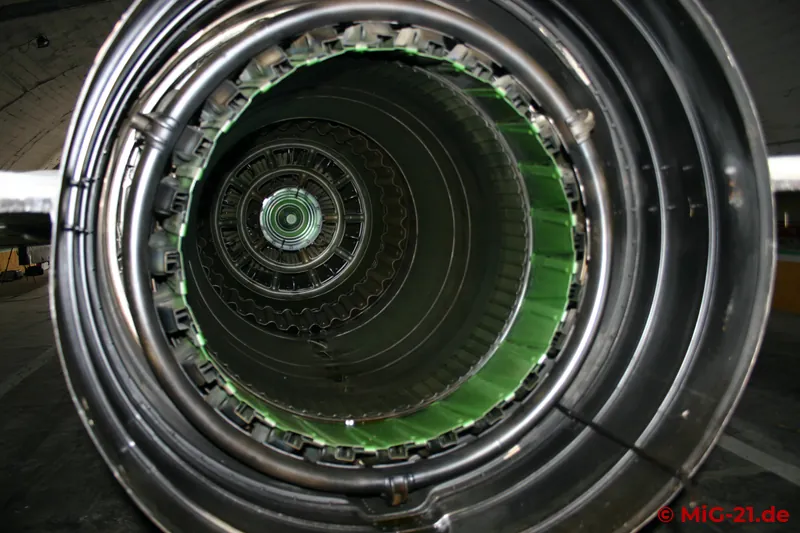

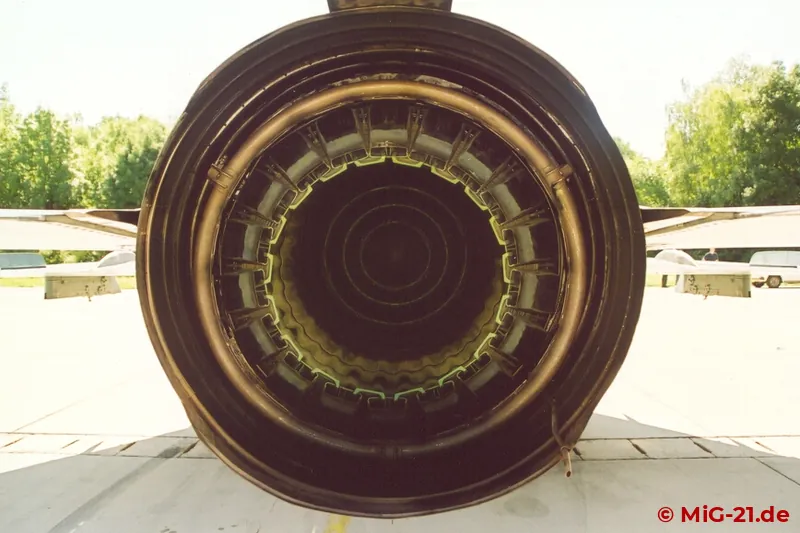

The flame stabilizers of the R-25 are of circular shape.
|
|

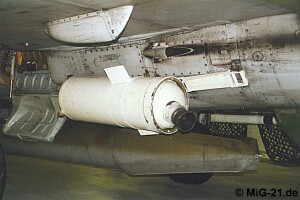

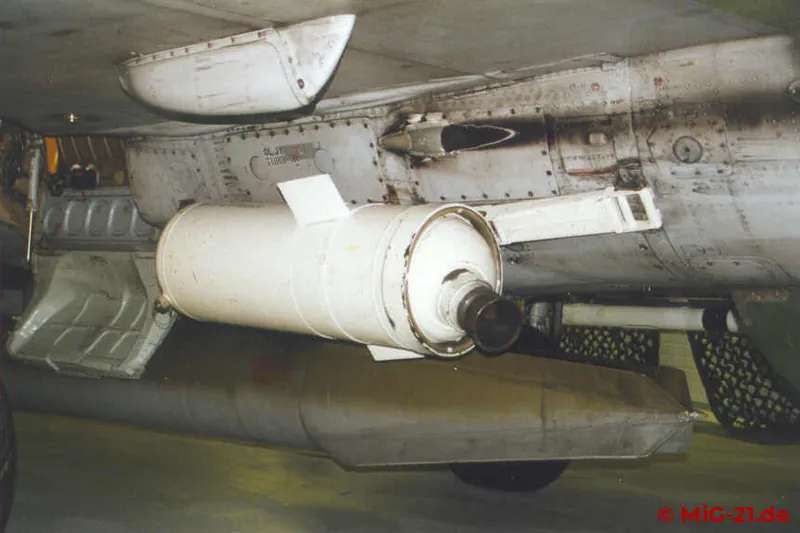

Not an engine in the true sense of the word: booster rocket SPRD-99 (seen here on a Finnish MiG-21bis).
|
Like the MiG-21 its Chinese copies were fitted with externally almost identical engines of different generations.
| Engine |
Versions |
Thrust (kN)* |
Remarks |
| WP-7 |
J-7I, F-7A |
38,2 / 53,4 |
|
| WP-7B |
J-7II, F-7B, JJ / FT-7 |
38,7 / 59,8 |
|
| WP-7BM |
F-7M / P |
40,2 / 59,8 |
|
| WP-7F |
J-7E |
44,1 / 63,7 |
|
| WP-13F |
J-7III, F-7PG |
44,1 / 65,9 |
similar to R-13-300 |
* with / without afterburner
|

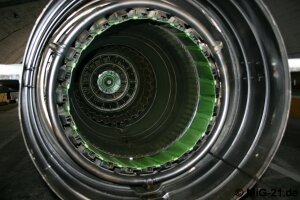

The WP-7 differs from the Soviet engines in a special combination of circular and star-shaped flame stabilizers.
|
| | |
